PM100X Particulate Matter Sensors

The pm100x sensor platform integrates the PM1003, PM1006, and PM1006K particulate matter sensors with ESPHome over UART or PWM duty-cycle output.

PM1003	PM1006 and PM1006K

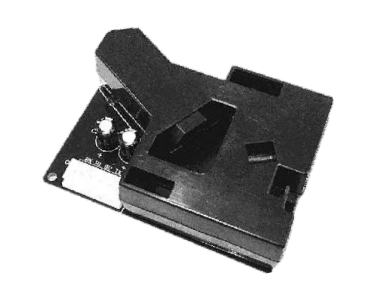

PM1003 Sensor	PM1006(K) Sensor

Example configuration:

UART (active requests, PM1003 default)

uart:
  rx_pin: GPIO22
  tx_pin: GPIO21
  baud_rate: 9600

sensor:
  - platform: pm100x
    update_interval: 15s
    pm_2_5:
      name: "PM2.5"

PWM only (PM1003 or PM1006K)

sensor:
  - platform: pm100x
    pm_2_5:
      name: "PM2.5"
    pwm:
      pin:
        number: GPIO27
        inverted: true

Configuration variables

model (Optional): PM100x model selection. One of pm1003, pm1006, pm1006k. Defaults to pm1003.
pm_2_5 (Optional): PM2.5 concentration in µg/m³. All options from Sensor. Required when pwm is configured.
pm_1_0 (Optional): PM1.0 concentration in µg/m³. Only supported on pm1006k and requires UART.
pm_10_0 (Optional): PM10.0 concentration in µg/m³. Only supported on pm1006k and requires UART.
pwm (Optional): PWM duty-cycle input for PM2.5. When set, UART is not used.
- pin (Required, GPIO input): Pin connected to PM1003 P1. Uses the ESPHome GPIO input pin schema.
uart_id (Optional): ID of the UART bus to use when multiple UARTs are configured.
startup_delay (Optional): Time to wait after boot before publishing measurements. Defaults to 15s.
update_interval (Optional): When using UART, this sets the measurement request interval. When using PWM, this sets the duty-cycle polling interval. Setting this to 0s in UART mode will disable sending measurement requests.

Model information

Model	Example devices	Measurement range	Interfaces	Measures
PM1003	Levoit air purifiers (Vital100s, LV-131PUR)	0–500 µg/m³	UART, PWM	PM2.5
PM1006	IKEA VINDSTYRKA	0–1000 µg/m³	UART	PM2.5
PM1006K	—	0–1000 µg/m³	UART, PWM	PM1.0, PM2.5, PM10.0

Supply voltage: 5V
Signal level: 4.5V TTL (UART and PWM)

Wiring

PM100x devices communicate via UART at 9600 baud or expose a PWM duty-cycle output on P1. Choose one method (UART or PWM).

RX/TX and PWM are 4.5V TTL. Use a level shifter (e.g: BSS138) for UART for 3.3V ESP boards. For PWM, a 10k/20k resistor divider to GND is required to bring the signal to 3.3V.

PM100X P1----[10k]----+----> ESP GPIO (3.3V)
                      |
                    [20k]
                      |
                     GND

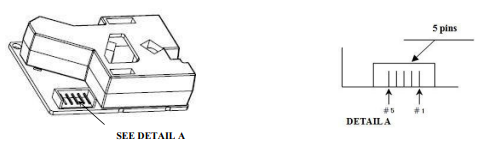

PM1003 Pinout

PM1003 pin	ESP pin	Notes
1 GND	GND	Ground.
2 TX	RX	UART data from PM1003 to ESP.
3 VDD	5V	Power input.
4 P1	Any GPIO input	PWM duty-cycle output for PM2.5.
5 RX	TX	UART data from ESP to PM1003

PM1006/PM1006K Pinout

PM1003 pin	ESP pin	Notes
1 GND	GND	Ground.
2 VDD	5V	Power input.
3 RX	TX	UART data from ESP to PM1006/K
4 TX	RX	UART data from PM1006/K to ESP.

Info: Pin 4 on the PM1006K outputs pwm if no uart cmds are are received after startup. Maybe also the PM1006 (not verified!)

Example Configuration:

UART (PM1006)

uart:
  rx_pin: GPIO22
  tx_pin: GPIO21
  baud_rate: 9600

sensor:
  - platform: pm100x
    model: pm1006
    pm_2_5:
      name: "PM2.5"

UART (PM1006K with PM1.0/PM10.0)

uart:
  rx_pin: GPIO22
  tx_pin: GPIO21
  baud_rate: 9600

sensor:
  - platform: pm100x
    model: pm1006k
    pm_1_0:
      name: "PM1.0"
    pm_2_5:
      name: "PM2.5"
    pm_10_0:
      name: "PM10.0"

UART - passive IKEA VINDRIKTNING

In common usage, with the IKEA VINDRIKTNING still controlling the pm1006 sensor, there is no update interval, and this implementation will passively pick up whatever the VINDRIKTNING MCU has requested from the sensor.

In this case you only need the rx_pin configured in UART.

The implementation was inspired by https://github.com/Hypfer/esp8266-vindriktning-particle-sensor; you can also see the pinout there. However, we recommend mounting your ESP below the fan (which blows out the front) so you do not obstruct the airflow. This discussion thread on the HA forum has several examples of how people have connected their ESP device to the IKEA sensor.

uart:
  rx_pin: GPIO22
  tx_pin: GPIO21
  baud_rate: 9600

sensor:
  - platform: pm100x
    model: pm1006
    update_interval: 0s # do not request
    pm_2_5:
      name: "PM2.5"

Notes

When pwm is configured, UART is not used.
pm1006 does not support PWM.
pm_1_0 and pm_10_0 are only available on pm1006k and require UART.
